Product development is a continuous process at Weddle Industries. Our design team is constantly searching for ways to make things stronger, function better or easier to install.

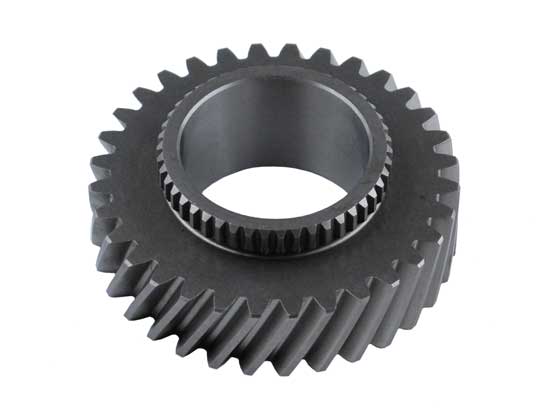

091/094 .75 IDLER, 40MM BORE, PROFILE GROUND, REM POLISHED
- 0.82 3.5% RPM reduction*
- 0.77 9.4% RPM reduction*
- 0.75 11.8% RPM reduction*
- 0.73 14.1% RPM reduction*
- 0.70 17.6% RPM reduction*
*This is the percentage reduction in RPM versus the stock 0.85 4th gear ratio. Some earlier transaxles came with a 0.88 4th gear, in which case the RPM reduction would be greater.
Precision profile grinding: All Weddle 091 and 094 gear sets are now being manufactured using a process called "Profile Grinding", which is a huge leap forward in gear manufacturing technology. What separates these gears from the previous generation of hobbed gears is their extremely precise gear tooth geometry. Grinding the final gear tooth form after heat treat eliminates imperfections and/or distortions left over from the gear hobbing, machining, and heat treatment processes. The result is a nearly perfect tooth form every time.
'76-'79 VW Type 2 (091 Bus), '80-'83 Vanagon (Air Cooled), '84+ Vanagon (Water Cooled), Mendeola MD4-2D, MD5, Weddle HV1
