S5-TRANS

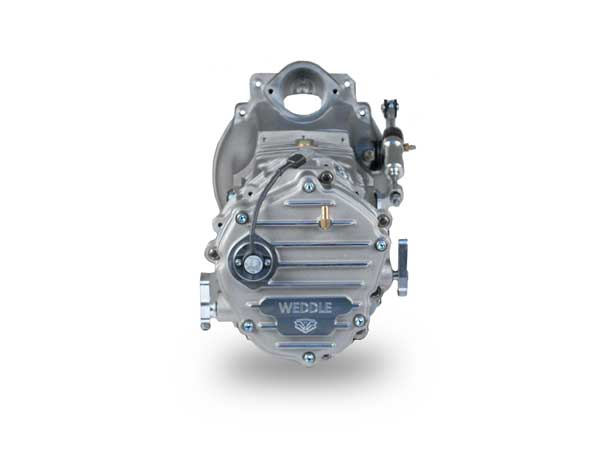

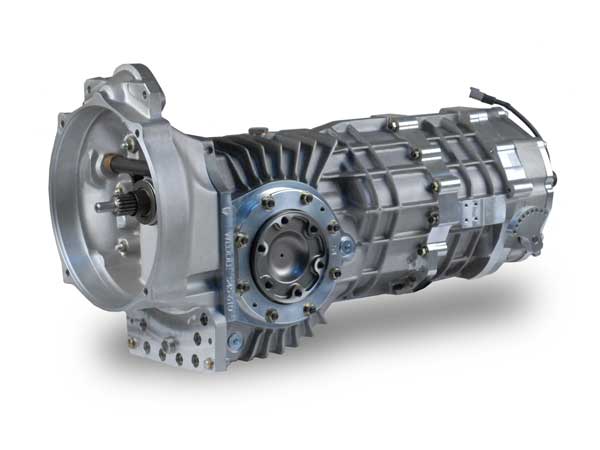

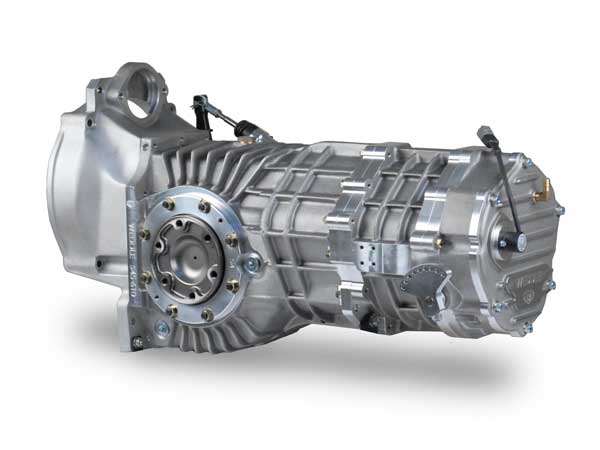

S5 SEQUENTIAL TRANS, COMPLETE
Sequential 5-speed with a 10" R&P. Origially known as the Mendeola S5, the Weddle S5 gearbox features 85mm shaft centers, heavy-duty gears, larger bearings, and a full size, usable reverse in a 5-speed configuration. The Weddle S5 is an excellent choice for desert pre-runners and/or street legal buggies running high-horsepower V-8 engines. A wide range of Weddle Racing ring and pinion sets and Weddle Industries proprietary 1st through 5th gears make it easy to tailor this trans for your specific application.
Part Number:
S5-TRANS
Shipping Weight:
190 lb
Availability:
Call
Price :
$16,495.00
This item cannot be purchased online.
To purchase this product, please call us
at 805-562-8600 or email us
Questions? Call us at 805 562 8600 or email us.
- Industry proven Weddle Klingelnberg 10" diameter ring and pinion
- Spiral bevel ring and pinion reduces frictional losses and can be run mid or rear engine
- Bronze load bolt prevents ring gear displacement
- Weddle Racing gears with extra wide faces. Design based on 85mm shaft center distance
- Sequentially shifted forward gears
- 2" narrower than a VW Bus trans
- Hemi spline 300M input shaft (1-3/16" x 18 spline)
- 934 flanges standard, 930 available
- External housings cast from A356 aluminum and heat treated to T6 condition
- Housings stainless shot blasted after casting
- Billet aluminum sidecovers
- Differential supported by heavy-duty tapered roller bearings
- Outboard ball bearings support the drive flanges
- Housings pre-drilled for external oil system
- Download Installation Instructions
- Download Exploded View Diagrams
- Download Drawing CH BH
- Download Drawing VW BH
- Torque Biasing Limited Slip Diff option - See pricing
- Billet Aluminum Differential option - See pricing
- Billet Aluminum Spool option - no extra charge
- Bell Housing for Side Mount Starter - no extra charge
- REM Polish All Critical Internal Components See pricing
- Harget Shifter, Dual Lever See pricing
- Aftermarket Shifter, Dual lever See pricing
- Ring and Pinions: 5.14, 4.86, 4.63, 3.56
- 1st Gears: 3.27, 3.09, 2.91
- 2nd gears: 2.21, 2.14, 2.08, 1.93
- 3rd, 4th and 5th gears: 1.93, 1.86, 1.79, 1.75, 1.67, 1.59, 1.56, 1.50, 1.44, 1.37, 1.32, 1.26, 1.20, 1.14, 1.10, 1.04, 1.00, 0.96, 0.89
