CLK-PBS-LSA-C11-1

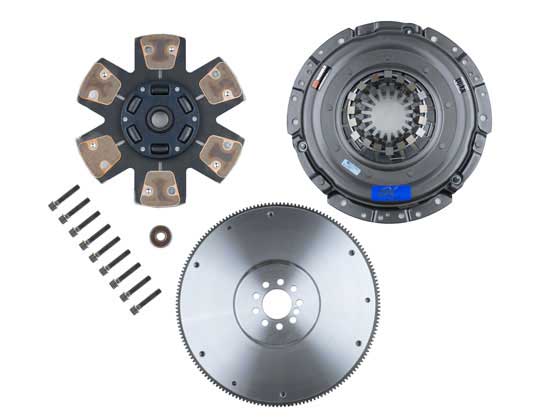

WEDDLE 11" SINGLE PLATE CLUTCH PACKAGE FOR PBS SHORT CHEVY BELL HSG TO LSA MOTOR (8-BOLT CRANK) PACKAGE INCLUDES: 1 CL11-FW-LSA-1 FLYWHEEL 1 CL11-COVER-1 CLUTCH COVER 1 CL11-DISC-126 CLUTCH DISC 1 CL-PILOT-28 PILOT BEARING 8 H-BM11X22XHD BOLTS 1 CL-165B-1236 12MM T/O BRG EXTENDER 2 SC-00331 SPACERS FOR T/O BRG (6MM TOTAL) 1 SC-00170A FLAT THROWOUT BEARING INSTALLATION NOTES: THIS CLUTCH PACKAGE IS DESIGNED FOR .300" CRANK OFFSET AND PBS SHORT CHEVY BELL HOUSING (WITH VW STYLE CLUTCH RELEASE MECHANISM). THE 27.8MM DIAMETER PILOT BEARING INCLUDED WITH THIS PACKAGE INSTALLS DEEP IN THE CRANKSHAFT TO MAKE ROOM FOR THE PBS INPUT SHAFT SPLINES. IF YOU ALREADY HAVE A 43.3MM PILOT BEARING INSTALLED IN YOUR CRANKSHAFT, IT MUST BE REMOVED AND DISCARDED. A BLOCK MOUNTED STARTER IS REQUIRED (910-LS).

Mendeola S4/S5/S4D/S5D

Part Number:

CLK-PBS-LSA-C11-1

Shipping Weight:

61.400000

Availability:

In Stock

Price :

$1,070.11
