Product News
Product development is a continuous process at Weddle Industries. Our design team is constantly searching for ways to make things stronger, function better or easier to install.
AGB-SS5-R4-TRANS

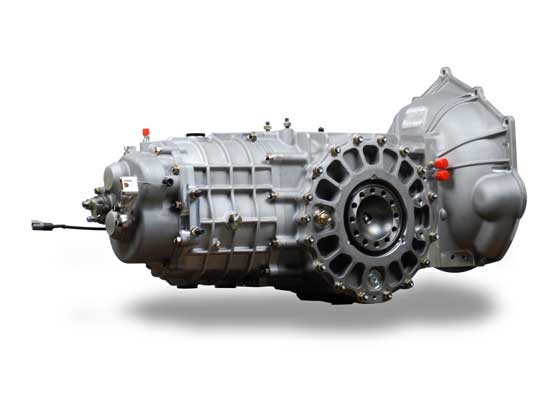

AGB R4 SEQUENTIAL 5-SPEED TRANSAXLE
AGB R4 SEQUENTIAL 5-SPEED TRANSAXLE
The NEW Albins AGB R4 is a major upgrade to the original AGB. New R4 features include wider 2nd through 4th gears, a newly designed shift mechanism, a stronger diff, and an optional revised shift pattern for paddle shifted vehicles, all packaged in the same size case as the original.
Applications:
Albins AGB/R4 Sequential
Part Number:
AGB-SS5-R4-TRANS
Shipping Weight:
220 lb
Availability:
Call
Price :
$39,950.00
This item is temporarily out of stock.
For more information, give us a call
at +1 805-562-8600 or email us
X
![]()
AGB-SS5-R4-TRANS
Questions? Call us +1 805 562 8600 or email us.
- Same external envelope and mounting points as the original AGB
- Helical-cut drive gears increase load carrying capacity
- Wider 2nd, 3rd, and 4th gears (4-5mm) than standard AGB
- 11.5" diameter Klingelnberg Palloid Ring & Pinion
- Spiral bevel final drive reduces frictional losses and transfers maximum power to the wheels
- Cast LM25 aluminum housings heat treated to T6 condition and stainless shot blasted after casting
- Heavy duty constant mesh reverse gear
- Redesigned side cover for increased rigidity, preventing differential deflection under high shock loads
- Internally ribbed differential housing increases ground clearance
- Available for mid or rear-engine applications
- Hydraulically actuated throw out bearing available with flat or convex thrust surface
- Redesigned planetary differential increases the diameter of the sun gear, adds support to the drive flanges, and adds one more planetary gear for increased load carrying capacity.
- Redesigned shift mechanism increases strength and precision
- Optional shift pattern available for paddle shifted vehicles
- 934/935 drive flanges are standard. Series 30 drive flanges now available at no extra charge
- Chevy bell housing option now available at no extra charge
- 8-AGB5 Billet Shifter For Albins AGB Sequential Trans
- AGB-00101-B Chevy Bell Housing Option – no extra charge
- AGB-00115-B Series 30 Drive Flange Option - no extra charge
- AGB-04812 Straight In Cable Linkage
- AGB-10040 Bell Crank Assembly for Solid Shaft Shift Linkage
- 8-AGB5-ERL Electric Solenoid for Reverse Lockout
- TC-BASE-NEW Torque Converter Package for New Trans
- AGB-00143-C 12.7mm Longer Input Shaft - + $75
- AGB-14617-NEW Internal Oil Pump Kit for New AGB Trans
- AGB-14617-RETRO Internal Oil Pump Kit to Retrofit an Existing AGB 11.5" Trans
- 8-KNOB-SG1 Integral Load Cell Gear Knob
- 8-AGB5-PSL Paddle Shift Linkage for AGB Sequential
